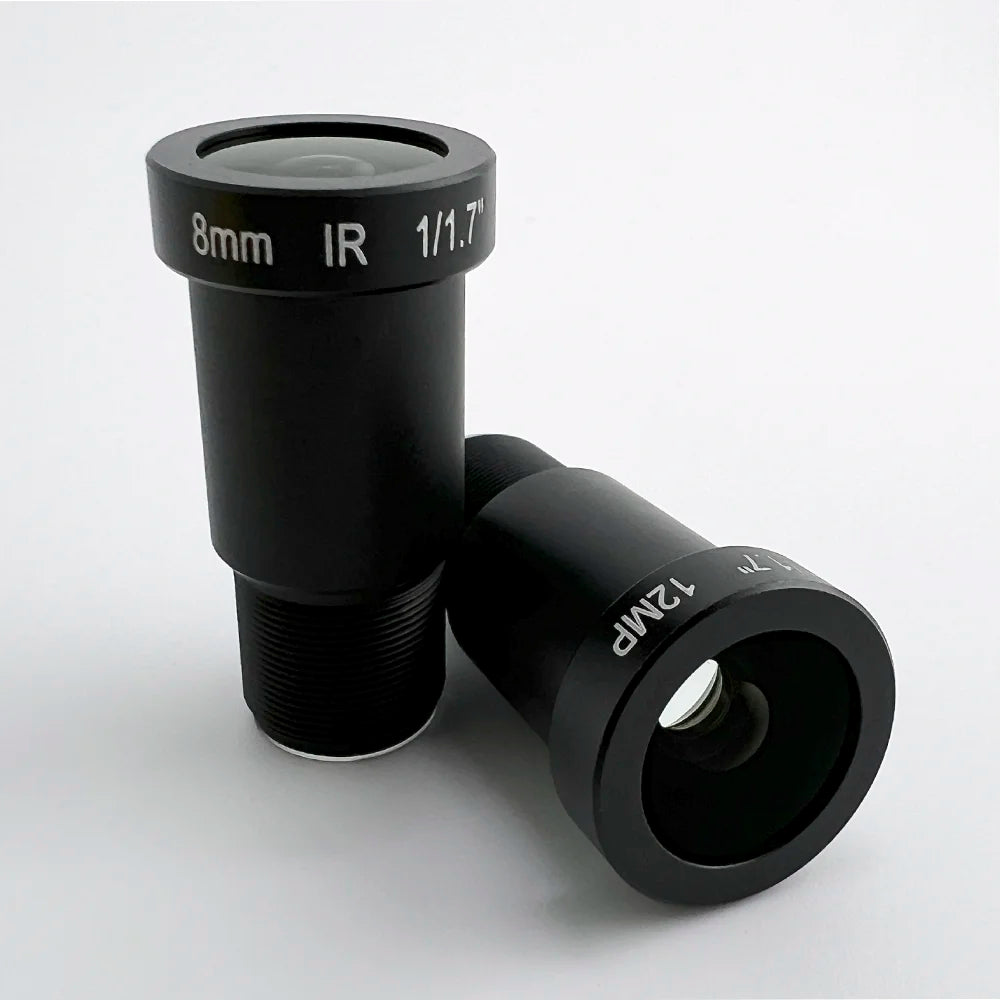

Wide-Angle 7.6mm M12 Lens for 1/1.7" sensors such as AR0821

Mid-Range 7.6mm M12 Lens

The CIL080 is a 7.6mm M12 lens which provides 70° Diagonal Field of View on 1/1.8" sensors. The fast F/1.8 and 12MP+ resolution makes this lens optimal for robotics applications and surveillance cameras.

$59.00

Selected Part Number is: CIL080-F1.8-M12A650

Request Volume Pricing

There are 76 units CIL080-F1.8-M12A650 (F/1.8 / M12A / With IRC Filter) in stock in the US.

There are 22 units CIL080-F1.8-M12ANIR (F/1.8 / M12A / Without Filter) in stock in the US.

Lens Features

Large Format

Suitable for up to 1/1.7" Type cameras, with a large 9.3mm image circle.

High Resolution

Suitable for >8MP 1/1.7" sensors such as AR0821.

Low F#

F/1.8 for great computer vision frame-rate and low light performance.

Optical and Mechanical Specification Table
Lens Parameter	Performance Detail
Part Number	CIL080
Format Type	1/1.7"
EFL	7.6mm
F#	1.8 Fixed
Resolution	8-12MP+
Field of View	48° @ 6.2mm image circle Calculate for your sensor using our M12 Lens Calculator
Image Circle	9.4mm
Distortion	3% F-Θ
Weight	11.5g
IR Cut-Off Filter	P/N With: CIL080-F1.8-M12A650 P/N Without: CIL080-F1.8-M12ANIR
Construction	All Glass, Aluminum

Mechanical Variants
Variant	Description
"M12A"	No Ingress Protection, BBAR on Lens 1 Surface 1, AL6061 Cap+Barrel

Mechanical Layout

Camera Mechanical Compatibility Table*
Camera/Mount	Compatibility
Commonlands Compatible Mount	CLA020
e-con Systems Standard S-Mount	12mm-15mm tall holder
Allied Vision Alvium S-Mount	Yes
FLIR Blackfly S Board	Yes
iDS uEye LE	Rev1.1: Yes, Rev1.2: Yes
The Imaging Source M12	Yes
Basler Dart S-Mount	Yes

*Mechanical compatibility only, assuming the standard M12x0.5 lens mount provided by the camera manufacturer. Please check optical compatibility separately.

View/Download .PDF Mechanical Drawing
